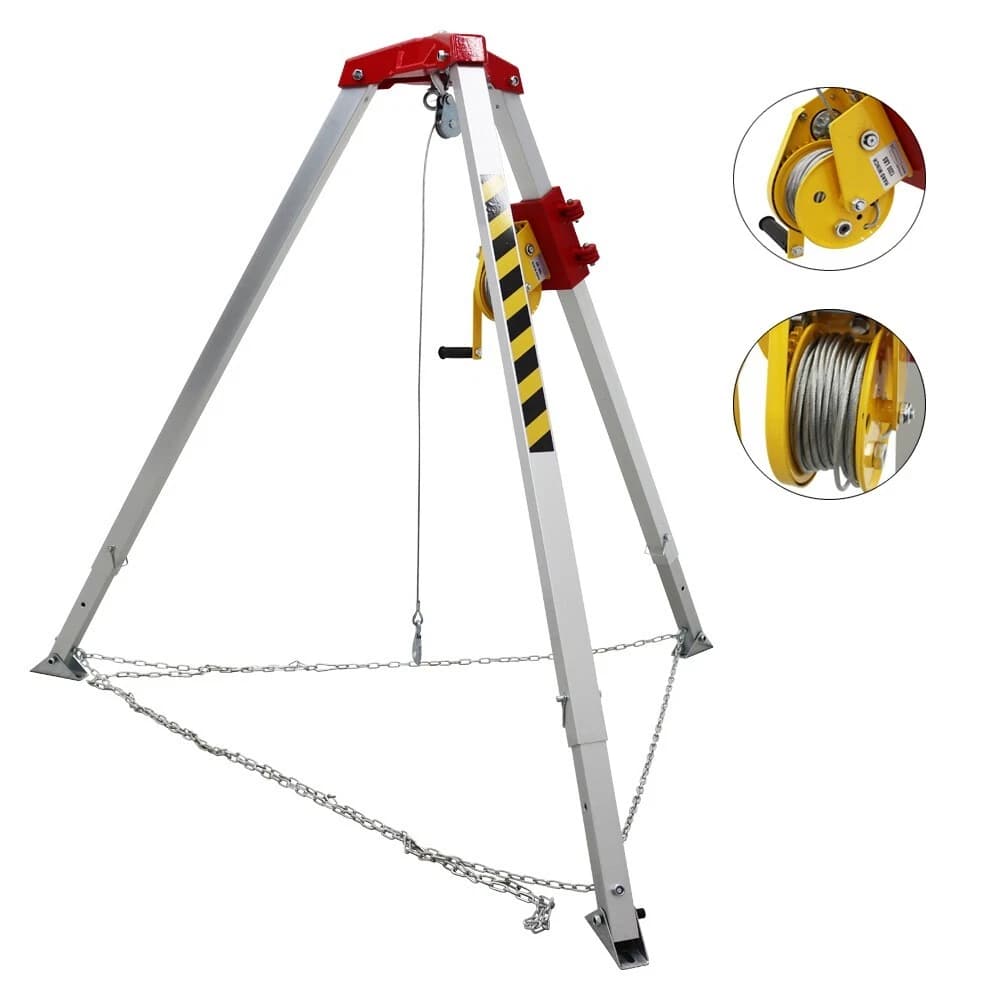

PST-361 catalogue tripod with winch, leg chains and winch detail insets
Catalogue images are for reference. Dimensions and markings shown may differ from the table; request current documents to confirm the offered configuration before ordering.

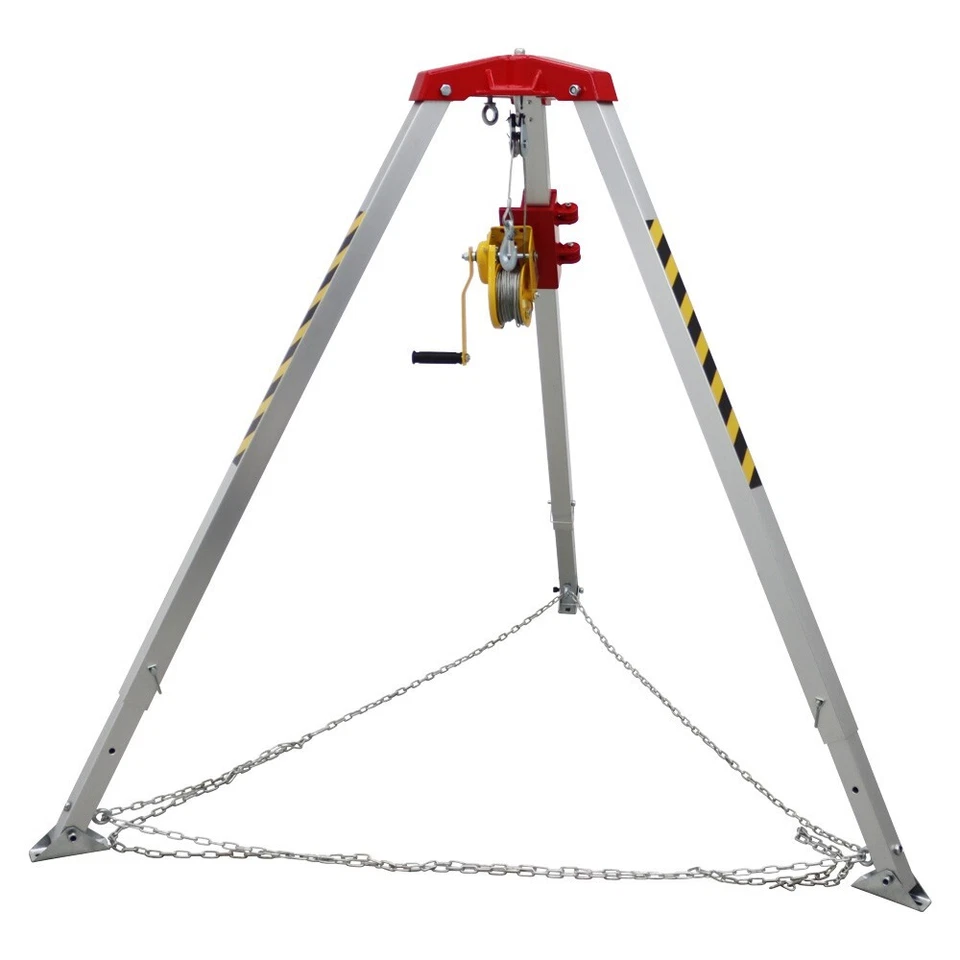

Rescue Tripod With Integrated Winch
Model: PST-361
The PST-361 catalogue describes an aluminium tripod with adjustable legs, a winch and leg chains. Review the listed dimensions and component figures below, then request the instructions and documents for the exact supplied configuration. Individual component ratings do not establish the approved capacity or number of users for the complete rescue system.
Catalogue details

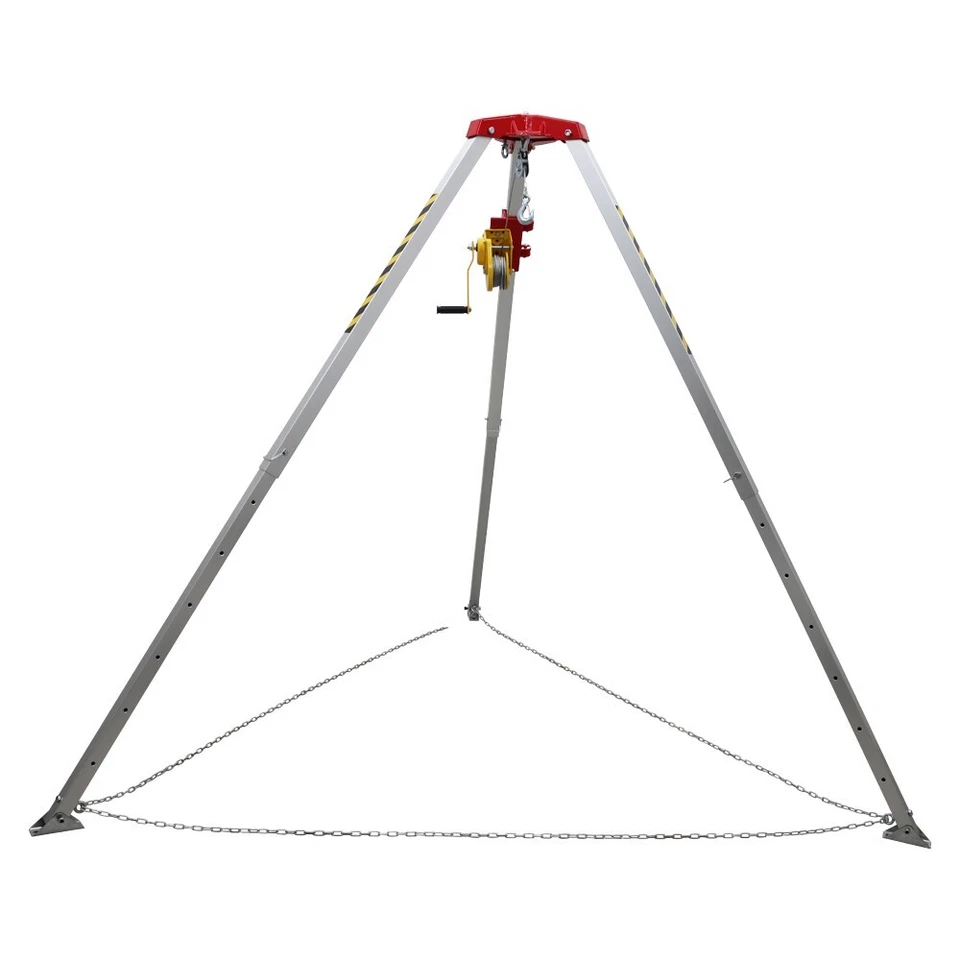

- Telescopic legs; listed height from 1.15 m to 2.15 m

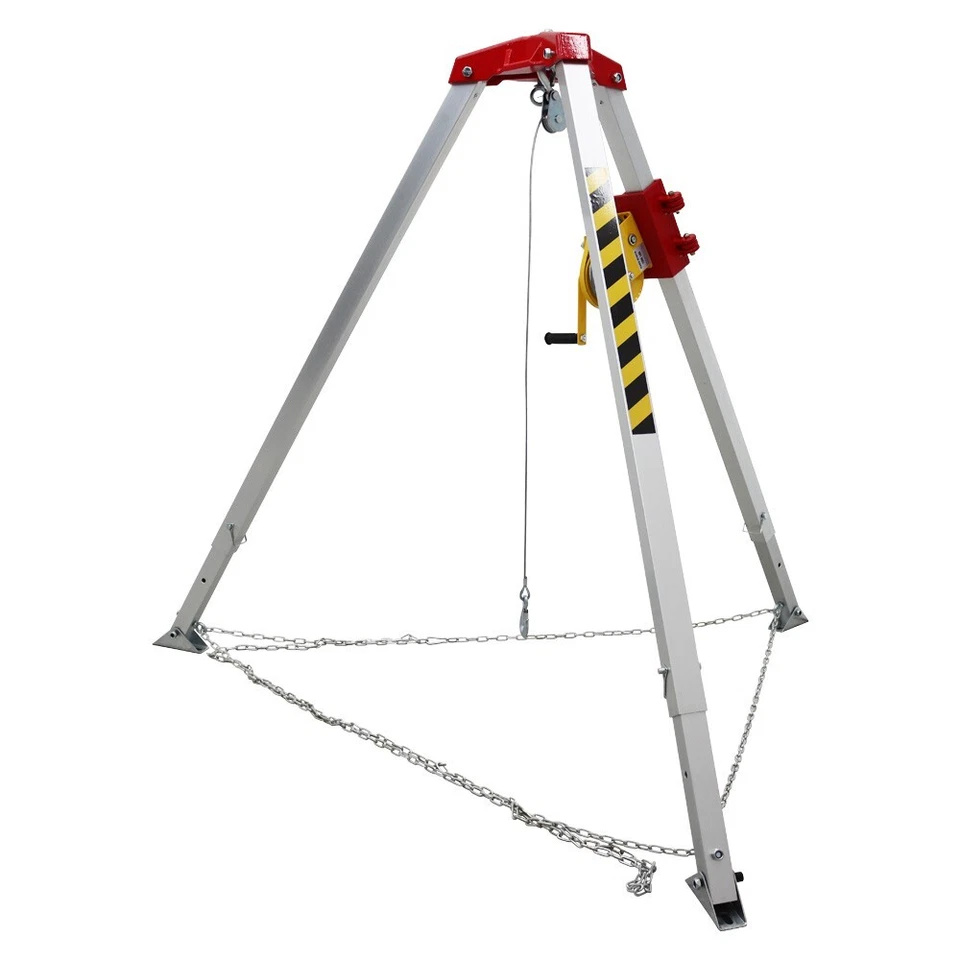

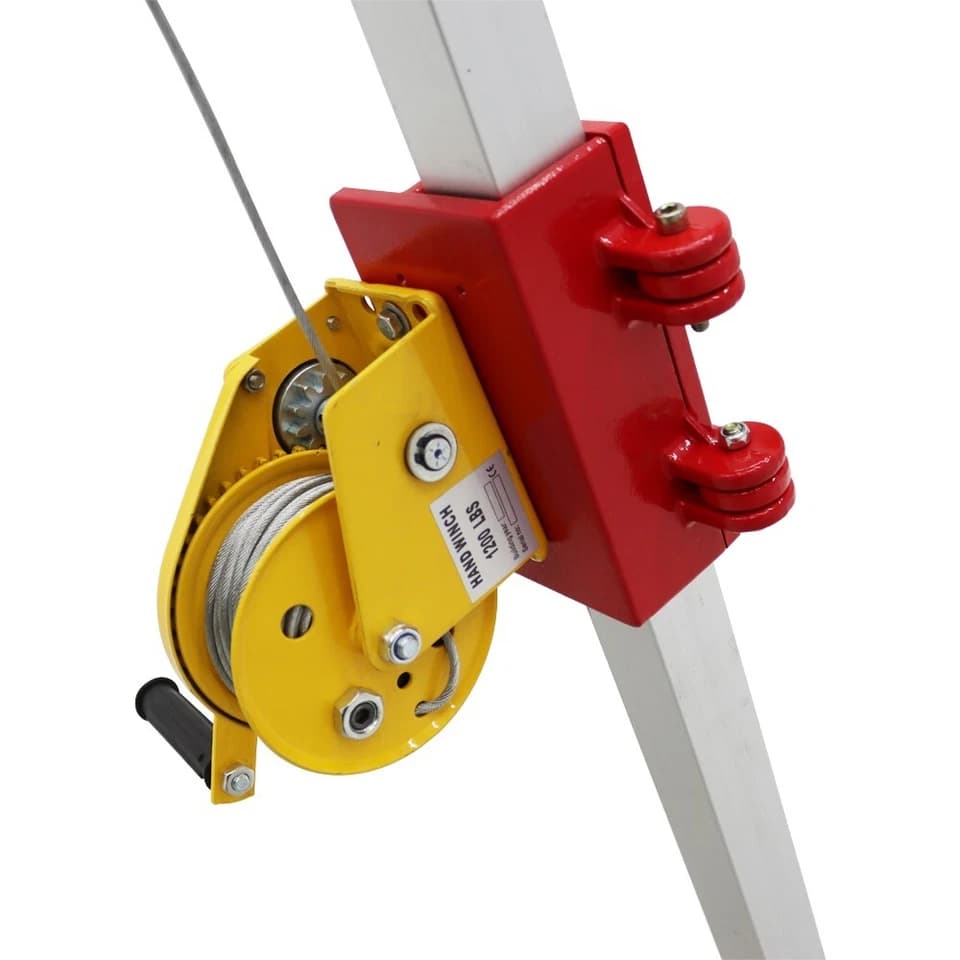

- Winch mounted on a tripod leg

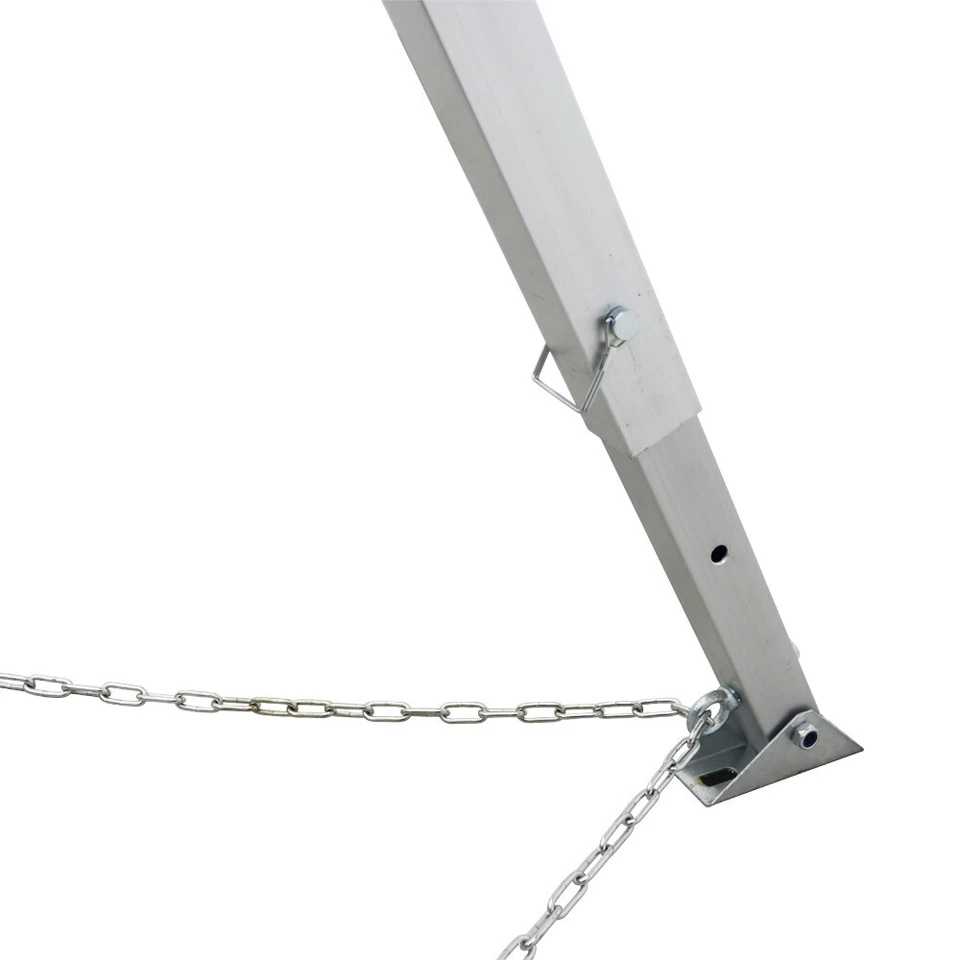

- Chains connecting the tripod feet
Components shown
- Aluminium legs described in the catalogue

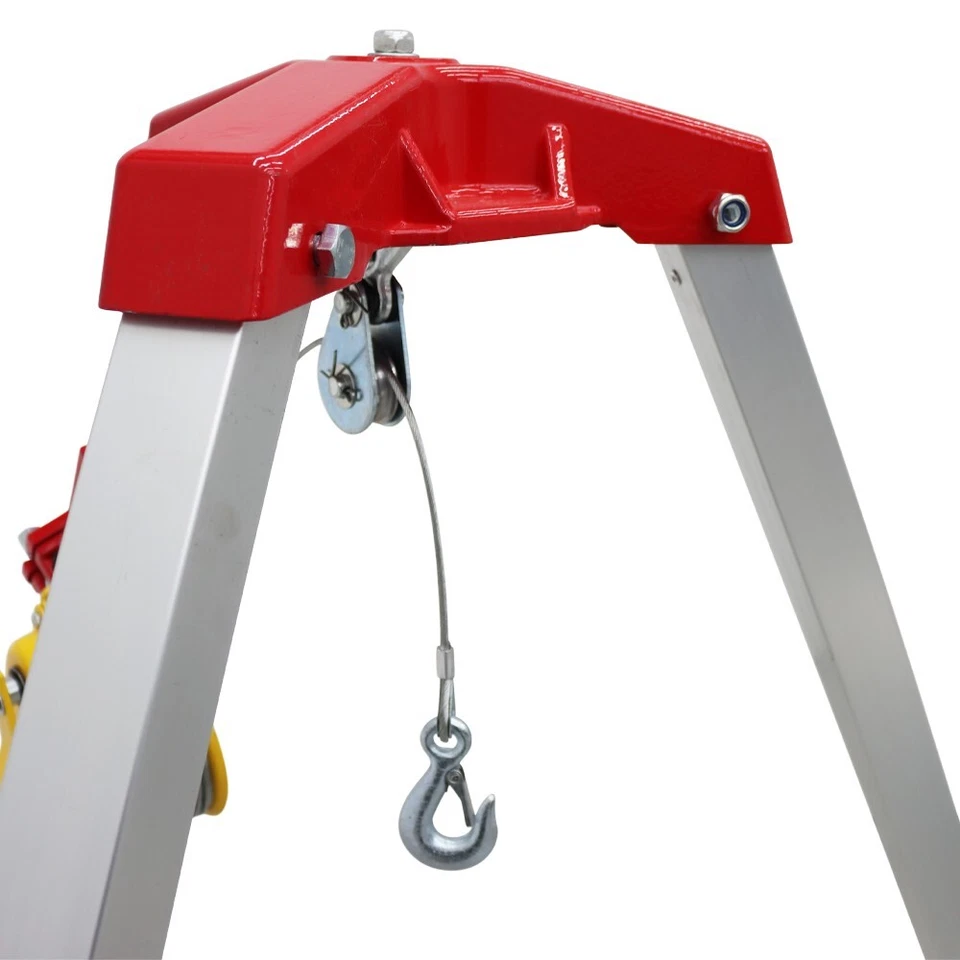

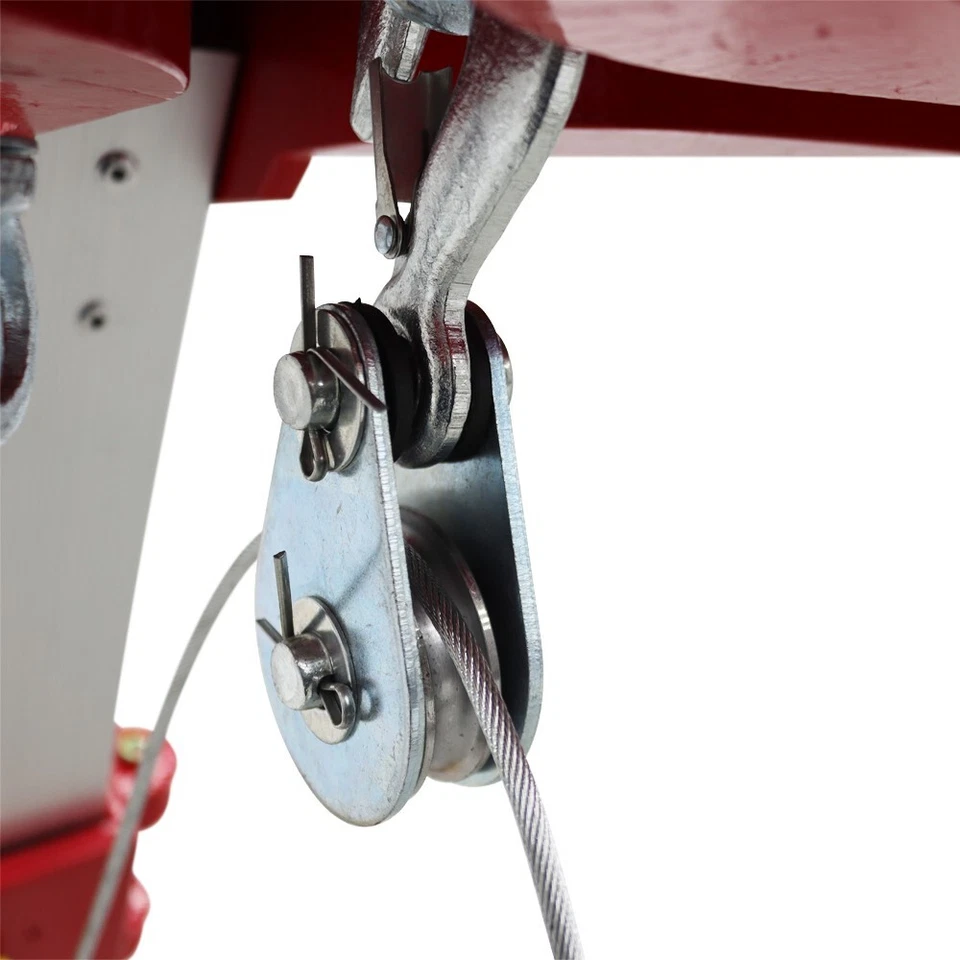

- Pulley, cable and hook
- Confirm cable material and maintenance requirements in the model documents
Technical Specifications

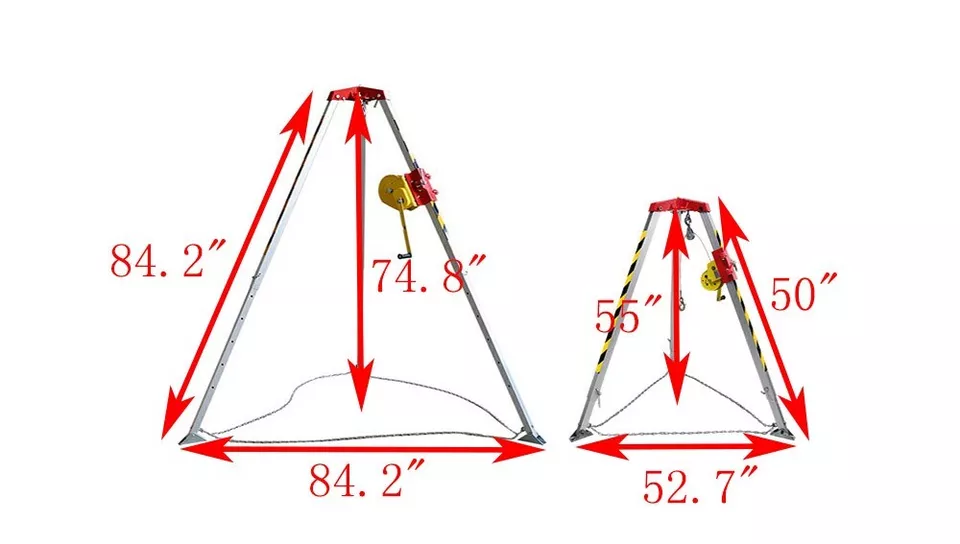

Dimensions
| Max Working Height | 2.15 m |
|---|---|
| Min Working Height | 1.15 m |
| Base Footprint Diameter (Wheelbase) | 1.80 m |
| Total System Weight | ≤30 kg |
Listed component figures — confirm system rating
| Tripod Max Load Capacity | 500 kgf |
|---|---|
| Winch Lifting Load Capacity | 250 kg |
| Wire Rope Length | 20 m |
| Wire Rope Diameter | 4.8 mm |
Request model documents
Request the datasheet, instructions and available conformity documents for the proposed configuration. Confirm the document list with your quotation.
Request model documents →Frequently Asked Questions
What should I confirm before ordering the PST-361?
Request the exact tripod and winch models, current instructions, supplied accessories and relevant conformity documents. Ask your responsible equipment team to review the proposed configuration against site requirements.
Does a component load figure confirm a two-person rescue rating?
No. A tripod component figure and a winch lifting figure describe different things. Do not infer a personnel or two-person rating from them. Obtain the manufacturer’s documented limits for the complete configuration.
Does the listed 20 m cable confirm a 20 m working depth?
No. The catalogue states cable length; it does not document usable travel or an approved working depth for the complete configuration. Request the actual winch instructions and written confirmation of usable travel and any restrictions. Provide your site dimensions for the responsible equipment team to review before ordering.
How do I request delivery to a GCC site?
Send the delivery country and city, quantity, required configuration and requested date. Price, availability, shipping terms and lead time are confirmed in the quotation.
Can I obtain a datasheet and inspection documents?
Use the document request link below to specify the model and the documents your procurement team needs. The quotation should identify which documents are available for the offered configuration.
